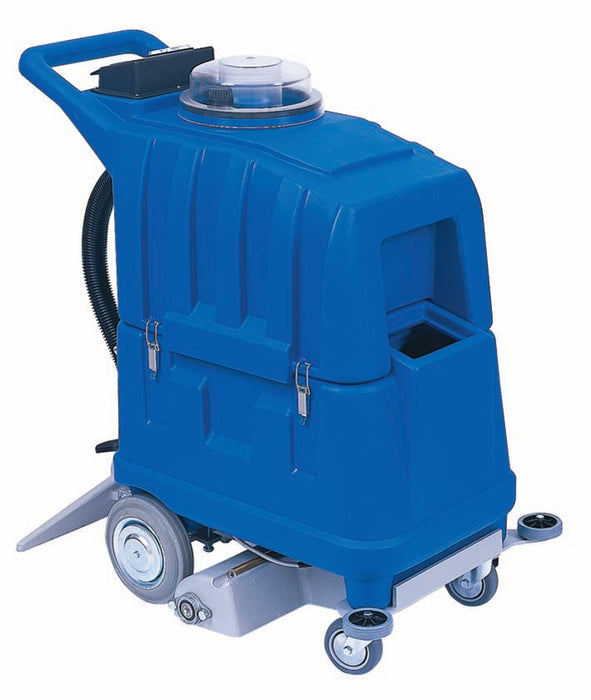

AV 12QX

AV 12QX

Self Contained Carpet Extractor

$2,800.00 - $2,800.00
$2,800.00
$2,800.00 - $2,800.00
$2,800.00
SKU 8025165 Availability: 7 Days

Product Description

Our walk-behind AV 12QX preserves quality, appearance, and life of carpets. It is quiet and surprisingly lightweight making it easy to maneuver and transport. Designed to tackle heavy duty jobs, the AV 12QX is constructed of durable polyethylene and features a 130 psi pump, providing a flow rate up to 1.2 gpm. The powerful 1.8 HP, three-stage vacuum motor provides 135-inch water lift and 95 cfm of airflow. The spring-loaded vacuum shoe is adjustable, ensuring consistent pressure and pick-up on different carpet thicknesses and uneven floors. While great at cleaning carpets, the carpet shoe is easily substituted with an optional squeegee for cleaning hard floors. You will find the AV 12QX perfect for both interim maintenance and restorative cleaning.
  • Tanks are constructed of roto molded polyethylene.
  • Powerful 1.8 HP 3 stage vacuum motor provides 135” water lift and 95 cfm of airflow.
  • Features a 130 psi diaphragm pump with bypass.
  • Excellent for both interim maintenance and restorative cleaning
  • Allows upwards of 4000 sq. ft./ hour to be cleaned.
  • Easy access removable spray bar with twist off jets
  • The lock down vacuum shoe ensures consistent pressure on the carpet at all times.
  • The large 12-gallon tanks enable it to tackle even the biggest commercial jobs.
  • Lightweight and easy to transport with the upper and lower tanks detaching into two separate units.
  • Accepts all optional accessories including the HT1800 heater and Smart Kit.
  • Airflow Hi 95 cfm
  • Capacity 12 US gal
  • Cleaning Width 20"
  • Flow Rate 1.2 gpm
  • Noise Level 60 dB(A)
  • Power Cord 50'
  • Pump Power 100 W
  • Pump Pressure 130 psi
  • Recovery Tank 12 US gal
  • Vacuum Motor 1400 W
  • Voltage 230 V
  • Water Lift Hi 135"
  • Weight 121 lbs
  • Working Capacity 4000 sq.ft./hr
  • All products
  • Carpet & Upholstery
  • Public Areas
  • Public Hallways
  • Restaurants/Lounges
Product Image Name of Product Part # Price Quantity
14 2 JET S/S S-WAND 14 2 JET S/S S-WAND 8020070 $675.72
20 EXTRACTION HOSE ASSY, PE 20 EXTRACTION HOSE ASSY, PE 13020PE $200.91
4 1/2 PLASTIC HAND TOOL, PE FITTING 1112PPE $96.42
4 ALUMINUM HAND TOOL, PE FITTING 1110APE $277.47
14 2 JET S/S S-WAND
14 2 JET S/S S-WAND
8020070
$675.72
20 EXTRACTION HOSE ASSY, PE
20 EXTRACTION HOSE ASSY, PE
13020PE
$200.91
4 1/2 PLASTIC HAND TOOL, PE FITTING
1112PPE
$96.42
4 ALUMINUM HAND TOOL, PE FITTING
1110APE
$277.47

SCHEMATICS DOWNLOADS

Review the first four digits of your serial number; if there are multiple schematics available, select the one where the four digits are closest with being higher. For example, if the first four digits are 0940 and the options to choose from were S/N 0801 and S/N 0946, you would choose the 0801 option as the correct drawing. If your serial number is higher than any provided, use the largest number available. If you only see one option use that.
